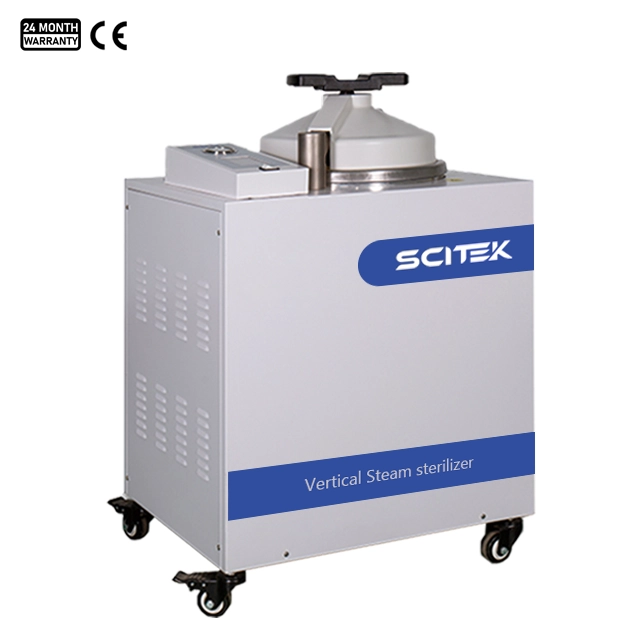

Vertical Pulse Vacuum Autoclave Feature:

Overheat Protection: Auto shut-off with alarm when temperature exceeds the limit.
Anti-Burning Safety: Halts heating and alerts when water is low.
Interlock System: Prevents operation if the door is open or pressurized.
Pressure Relief Valve: Activates if chamber pressure surpasses safety levels.
Touchscreen Control: Manages sterilization, drying, and all operations automatically.
3-Pulse Vacuum: Effectively removes air from dressings and hollow instruments.

Vertical Pulse Vacuum Autoclave Specification:

Model	ST-V50PV	ST-V80PV	ST-V100PV	ST-V120PV	ST-V150PV
Capacity	50L	80L	100L	120L	150L
External Size (WxDxH)(mm)	580x636x990	636x710x1030	630x710x1295	700x780x1190	780x850x1180
Chamber Size (ØxH)(mm)	Ø316×667	Ø386×695	Ø386×860	Ø450×760	Ø500×780
Chamber Material	SUS304
Sterilization Temperature	105~136 ℃
Designed Temperature	150℃
Max. Working Temperature	136 ℃
Dissolution Temperature	40~100℃
Warming Temperature	40~60℃
Temp.Accuracy	0.1℃
Temp. Uniformity	≤±0.5℃
Designed Pressure	0.3Mpa
Max.Sterilization Pressure	0.23Mpa
Ultimate Vacuum	-0.096MPa
Pressure Resoluiton	0.1KPa
Sterilization Time Range	0~99min
Temp. Controller	PID control by microprocessor
Display	LCD touch screen
Drying Function	YES
Drying Time	15min
Sterilization Program	●Medical instrument program
	●Luminal instruments
	●Dressings/Fabric program
	●Rubber program
	●Liquid program
	●BD Test program
	●Vacuum Test progrm
	Sterilization of medical dressing, medical Instruments, Instruments with cavity, Rubber,
	liquids plus 4 user-customized programs BD Test and vacuum test.
Water Injection Method	Built-in water tank
Power Consumption	3KW	4.5KW	5.4KW	7.2KW	9.3KW
Power Supply	220V 50Hz	220V 50Hz	220V 50Hz	380V 50Hz	380V 50Hz
Standard SS Basket	2pcs	2pcs	2pcs	2pcs	2pcs
Optional Accessories	Printer, USB port
Net Weight	85kg	95kg	112kg	180kg	210kg
Gross Weight	120kg	130kg	152kg	220kg	250kg
Shipping Size (WxDxH)(mm)	830x840x1250	880x910x1300	880x910x1550	1030x1050x1300	1030x1050x1450
