Model : ST-VB35; ST-VB50; ST-VB75; ST-VB100
- Volume : 35L; 50L; 75L; 100L
- Design Temperature : 139℃
- Rated Working Pressure : 0.22MPa
- Rated Working Temperature : 134℃

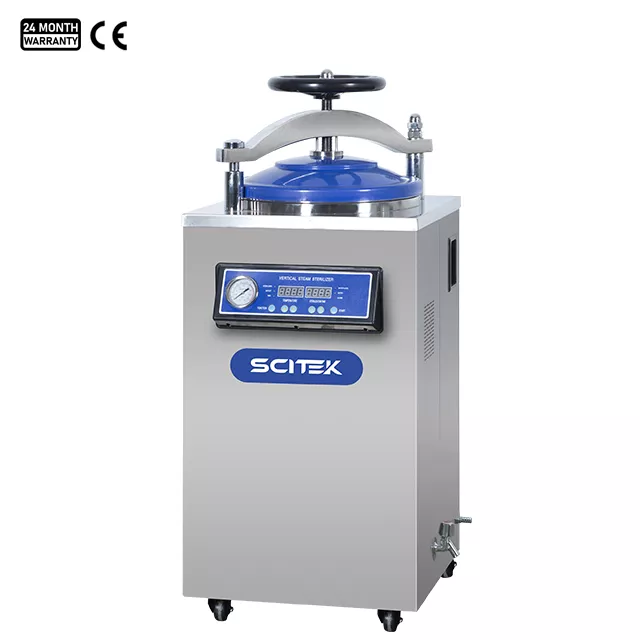

Vertical Pressure Steam Sterilizer VB Series
Vertical Pressure Steam Sterilizer Feature:
- Hand wheel translation and quick-opening structure for efficient operation.
- Durable stainless steel construction for long-lasting performance.
- Microcomputer control with customizable sterilization settings.
- Safety interlock system for secure cycle operation.
- Digital display and touch buttons for easy, intuitive control.
- Standard test interface for convenient calibration and validation.
- Self-expanding seal for a reliable chamber seal.
Vertical Pressure Steam Sterilizer Specification:
| Model | ST-VB35 | ST-VB50 | ST-VB75 | ST-VB100 |
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC 220V, 50Hz | |||
| Design Pressure | 0.25MPa | |||
| Design Temperature | 139℃ | |||
| Rated Working Pressure | 0.22MPa | |||
| Rated Working Temperature | 134℃ | |||
| Sterilization Temperature Setting Range | 116℃~134℃ | |||
| Sterilization Time Setting Range | 4~120min | |||
| Drying Time Setting Range | 0~240min | |||
| Chamber Volume | Ø350×400 | Ø350×525 | Ø400×625 | Ø450×650 |
| Bucket Size | Ø330×320 | Ø330×460 | Ø380×560 | Ø420×540 |
| Basket Size | Ø320×350 | Ø320x240x2 | Ø360x280x2 | Ø410x300x2 |
| Outer Size | 480x480x1000 | 480x480x1120 | 525x525x1190 | 550x550x1250 |
| Packing Size (LxWxH)(mm) | 580x630x1130 | 580x630x1230 | 630x680x1290 | 690x650x1410 |
| Gross Weight | 79kg | 106kg | 120kg | 133kg |
| Net Weight | 58kg | 80kg | 90kg | 106kg |
WHY SCITEK
- 24 Months Limited Warranty
- CE Standards
- 1-2 Days Handling and 7-30 Days Shipping
