Model : ST-VL65; ST-VL80; ST-VL90; ST-VL110
- Capacity : 62L; 80L; 88L; 110L
- External Size(WxLxH)(mm) : 550×640×900 550×640×1150
- Chamber Material : SUS304 Stainless steel
- Standard Accessory : Mesh basket or tote bag, gloves, and drain hose.

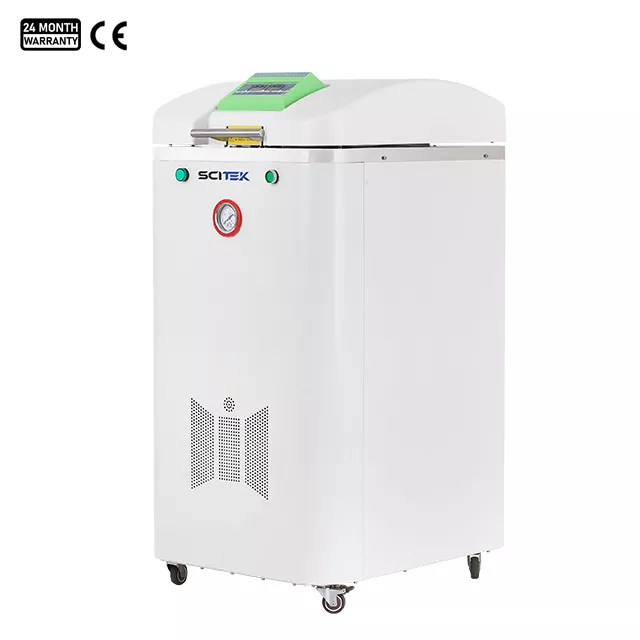

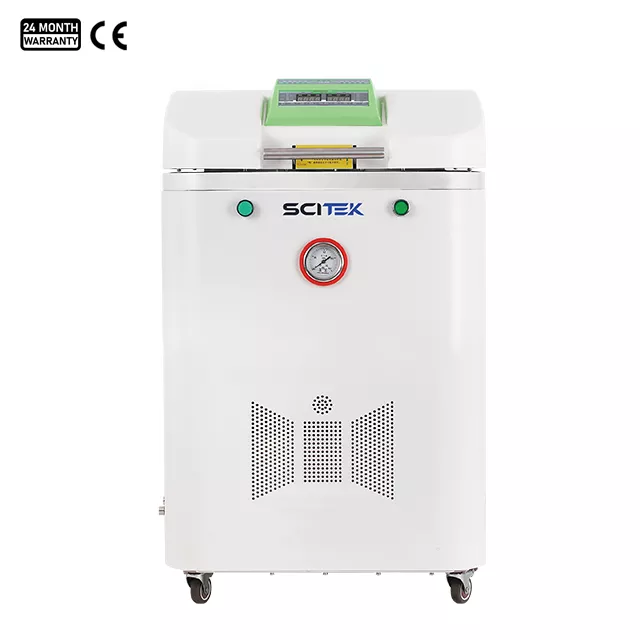

Vertical Pressure Steam Sterilizer
The vertical pressure steam sterilizer offers reliable, automated sterilization with microcomputer control, overheating and overpressure protection. Designed for safety, ease of use, durability, and energy efficiency.
Vertical Pressure Steam Sterilizer Feature:
Control function:
- Microcomputer fully automatic control of the sterilisation process, no need for real-time personnel guarding
- The sterilisation process can be viewed at any time, running steps
- Multiple sterilisation modes
- More than five sterilisation modes: agar, solid, liquid, instrument, etc.
- Expandable memory to store 80 sterilisation procedures
Safety function:
- Safety interlock device
- Anti-dry burn alarm
- Over-temperature protection, over-voltage protection
- Electrical safety protection: leakage, over-current and short-circuit protection function
Vertical Pressure Steam Sterilizer Specification:
| Model | ST-VL65 | ST-VL80 | ST-VL90 | ST-VL110 |
| Capacity | 62L | 80L | 88L | 110L |
| External Size(WxLxH)(mm) | 550×640×900 | 550×640×1150 | ||
| Internal Size | φ365×484H | φ414×484H | φ365×734H | φ414×734H |
| Chamber Material | SUS304 Stainless steel | |||
| Power Supply | AC 220V 50Hz 16A | |||
| Consumption | 4000W | |||
| Sterilization Temperature /Time | 115-138°C Continuously adjustable, 0-9999 minute countdown display | |||
| Dissolution Temperature /Time | 60-100°C continuously adjustable/0-9999 minutes countdown display | |||
| Holding Temperature/Time Preset Range | 45-80°C adjustable/300 minutes | |||
| Unlock Temperature | 60-95°C can be set (default 80°C) | |||
| Verification Interface | Reserved pressure and temperature pipe thread verification interface | |||
| Temp. Controller | Using PT100AA^ temperature sensor, with a resolution of 0.1 | |||
| Appointment Feature | Advanced booking for any time within the next year | |||
| Pressure | 0.26Mpa | |||
| Standard Accessory | Mesh basket or tote bag, gloves, and drain hose. | |||
| N.W./G.W. (kg) | 72/102 | 82/112 | 85/115 | 95/125 |
| Package Size(WxLxH)(mm) | 650×740×1050 | 650×740×1250 | ||
