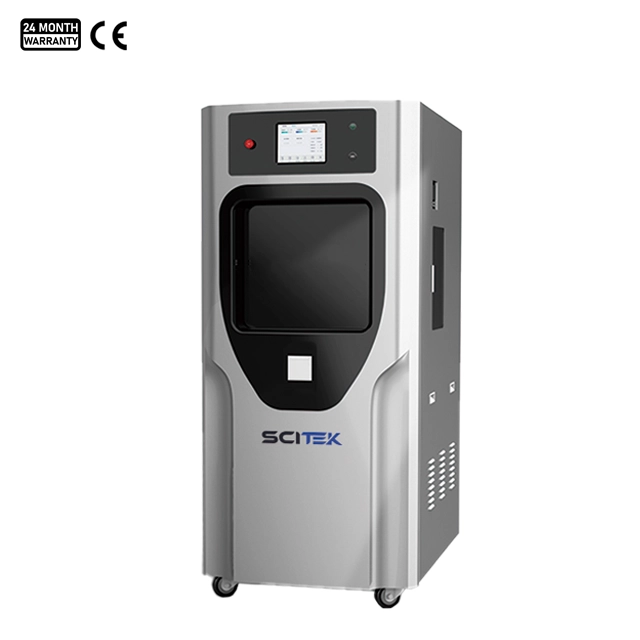

Low Temperature Formaldehyde Steam Sterilizer Feature:

Loading: Movable stainless steel basket with support rods to prevent item overlap.
Control: Siemens PLC with one-click start, real-time display, and upgrade support.
Heating: PID-controlled zones for stable door, tank, and steam temperatures.
Display: Shows temperature, pressure, time, mode, and alarms clearly.
Power Memory: Saves data during outages to avoid errors and reduce losses.
Steam Generator: Fast-evaporation design boosts formaldehyde vaporization and sterilization efficiency.

Low Temperature Formaldehyde Steam Sterilizer Specification:

Model	ST-FT100	ST-FT130	ST-FT150
Capacity	100L	130L	150L
Chamber Size(WxDxH)(mm)	700x430x360	750x450x400	820x645x400
Consumption	5.3KW
Sterilizer Solution	2% formaldehyde, 3% alcohol, and 95% distilled water solution
Sterilizer Solution Packaging Specification	2L
Single Cycle Dosage	0.6-1.3Kg
Operating Temperature	60℃ and 76℃
Sterilization Time	2-3.5 hours
Water Consumption	3.95Kg/min
Heating Method	Electric heating
Anti-pressure	5pa
Operation Height	≤160cm
Chamber Material	5052 corrosion resistant aluminum alloy, with antioxidant treated
Cabinet Material	ABS
Door Panel Material	5052 corrosion resistant aluminum alloy, with antioxidant treated, ≥10mm
Pipe Materials	SS304 stainless steel
Insulation Materials	High quality insulation cotton
Door Form	Automatic door
Display	8 inch Touch Screen
External Size(WxDxH)(mm)	1070x790x1770
Package Size(WxDxH)(mm)	1200x900x1980
