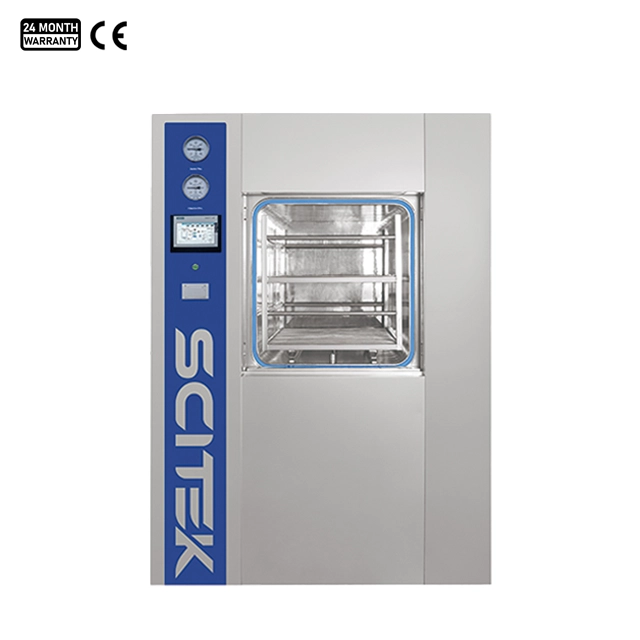

Horizontal Pulse Vacuum Autoclave with Lift Door

Horizontal Pulse Vacuum Autoclave with Lift Door

Model : ST-BV150PV; ST-BV180PV; ST-BV250PV; ST-BV300PV; ST-BV360PV; ST-BV450PV; ST-BV600PV; ST-BV800PV

  • Volume(L) : 150 / 180 / 250 / 300 / 360 / 450 / 600 / 800
  • Chamber Design Pressure : -0.1/0.3MPa
  • Generator Design Pressure : 1MPa
  • Design Temperaure : 150℃
  • Maximum Operating Temperature : 139℃

Share the product

Category:

Horizontal Pulse Vacuum Autoclave Feature:

  1. The lift door switch features a motor-driven chain for vertical sliding, saving space and eliminating manual operation. It has interlocking double doors with pressure and temperature safety interlocks for liquid programs.
  2. The inflatable sealing ring uses tear-resistant silicone rubber with a special coating for durability and enhanced sealing, lasting up to 1500 cycles.
  3. Its rectangular structure includes a European-style circular rib clamp-on flange, with welded sealing grooves.
  4. A Siemens PLC and touch screen enable full automation, displaying process status, curves, and key parameters.
  5. The MNcold IoT module supports real-time remote monitoring, fault alerts, and software updates via computer, tablet, or smartphone.

Horizontal Pulse Vacuum Autoclave Specification:

Model ST-BV150PV ST-BV180PV ST-BV250PV ST-BV300PV ST-BV360PV ST-BV450PV ST-BV600PV ST-BV800PV
Chamber Size (WxHxD)(mm) 450×450×750 450×450×900 550×550×845 550×550×1000 610×610×1000 652×690×1000 652×690×1350 652×690×1800
Volume (L) 150 180 250 300 360 450 600 800
Overall Sizes (LxWxH)(mm) 1045×1120×1800 1185×1120×1800 1200×1290×1850 1350×1290×1850 1350×1350×1850 1350×1400×1950 1700×1400×1950 2150×1400×1950
Steam Consumption (KG/C) 12 12 16 18 20 22 35 52
Water Consumption (KG) 80 90 120 140 160 180 320 400
Power 380V, 50HZ, 2KW+(12KW) 380V, 50HZ, 2KW+(15KW) 380V, 50HZ, 2KW+(20KW) 380V, 50HZ, 2KW+(20KW) 380V, 50HZ, 2KW+(20KW) 380V, 50HZ, 2KW+(30KW) 380V, 50HZ, 3KW+(36KW) 380V, 50HZ, 3.5KW+(48KW)
Shipping Size (Main Machine) (WxDxH)(mm) 1210×1280×2110 1350×1270×2100 1350×1450×2100 1500×1400×2100 1470×1500×2150 1500×1550×2200 1850×1550×2250 2150×1430×2250
Shipping Size (Sterilizer Loading Cart)(WxDxH)(mm) – – 1420×800×1050(S) – 1600×750×1100(S) – – –
– – 1420×1200×1050(D) 1500×1150×960(D) – 1450×1150×1050(D) 1900×1150×1050(D) 2350×1350×1100(S)
Total shipping sizes = Main machine + Sterilizer Loading Carts;
N.W./G.W. (kg) 520/670 560/710 745/895 820/970 870/1020 965/1115 1150/1300 1350/1500
Chamber Design Pressure -0.1/0.3MPa
Jacket Design Pressure 0.3MPa
Generator Design Pressure 1MPa
Design Temperaure 150℃
Maximum Operating Temperature 139℃
Maximum Operating Pressure 0.25MPa
Chamber Relief Valve 0.28MPa
Jacket Relief Valve 0.28MPa
Accuracy of Temperature 0.1℃
Accuracy of Pressure 0.1KPa
Sterilization Temperature Control Accuracy ±1℃
Temperature Uniformity ±1℃
Negative Pressure Pulsating Vacuum -80~0KPa
Across the Pressure Pulsation -80~80KPa
Positive Pressure Pulse 0~9 times
Maximum Vacuum -96KPa
