Model : ST-BVA250PV/360PV/600PV/800PV/1000PV/1200PV/1500PV/2000PV/2500PV/3000PV/4000PV/6000PV
- Interior Design Pressure : -0.1~03MPa
- Jacket Design Pressure : 0.3MPa
- Design Temperature 150℃
- Sterilization Temperature Control Precision : 0-2℃

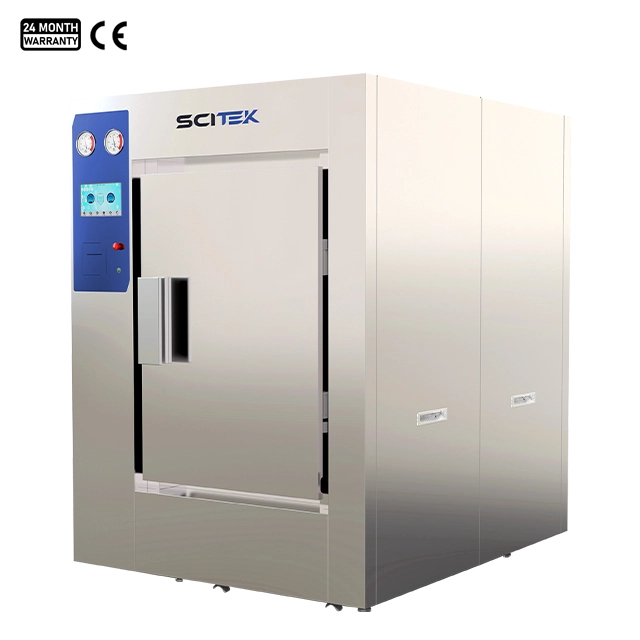

Horizontal Pulse Vacuum Autoclave, Motorised Door
Horizontal Pulse Vacuum Autoclave Feature:
- The pulse vacuum autoclave features a translation door with an anti-pinch function and a double-door channel design, equipped with pressure and temperature safety interlocks on the liquid process door to ensure comprehensive operational safety.
- Its high-efficiency automatic sealing ring delivers exceptional sealing performance, with a lifespan of up to 1500 cycles, ensuring reliable and durable operation.
- The main structure includes a European ring reinforcement jacket, PLC programmable controller, and a color touchscreen interface.
- It offers versatile customizable programs for sterilizing aseptic clothing, utensils, rubber, liquids, media, waste, and more, along with professional tests like BD tests and vacuum leakage tests to meet diverse needs.
Horizontal Pulse Vacuum Autoclave Specification:
| Model | ST-BVA250PV | ST-BVA360PV | ST-BVA600PV | ST-BVA800PV | ST-BVA1000PV | ST-BVA1200PV | ST-BVA1500PV | ST-BVA2000PV | ST-BVA2500PV | ST-BVA3000PV | ST-BVA4000PV | ST-BVA6000PV |
| Capacity(L) | 255 | 360 | 600 | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 | 6000 |
| Interior Design Pressure | -0.1~03MPa | |||||||||||
| Jacket Design Pressure | 0.3MPa | |||||||||||
| Design Temperature | 150℃ | |||||||||||
| Max Working Temperature | 139℃ | |||||||||||
| Max Working Pressure | 0.25MPa | |||||||||||
| Vacuum Leakage Rate | ≤0.13KPa/min | |||||||||||
| Final Vacuum | -96KPa | |||||||||||
| Opening Pressure of the Inner Chamber Safety Valve | 0.28MPa | |||||||||||
| Jacket Safety Valve Opening Pressure | 0.28MPa | |||||||||||
| Sterilization Temperature Control Precision | 0-2℃ | |||||||||||
| Temperature Uniformity | ±0.5℃ | |||||||||||
| Negative Pressure Pulsating Vacuum Negative Value and Number | Amplitude -80~0KPa, frequency 1~99 | |||||||||||
| Number of Pulsations Across Pressure | Amplitude -80~80KPa, frequency 1 | |||||||||||
| Number of Positive Pressure Pulsations | 1~3 | |||||||||||
| Inner Tank Size (WxH)(mm) | 550×550 | 610×610 | 610×910 | 610×910 | 610×910 | 680×1180 | 680×1180 | 900×1380 | 900×1380 | 900×1380 | 900×1380 | 900×1380 |
| Depth | 850 | 1000 | 1200 | 1500 | 1800 | 1500 | 1850 | 1620 | 2050 | 2400 | 3200 | 4800 |
| Overall Size (LxWxH)(mm) | 1150x1280x1800 | 1300x1350x1850 | 1500x1440x1900 | 1800x1440x1900 | 2100x1440x1900 | 1800x1480x2000 | 2100x1480x2000 | 1970x1750x2200 | 2350x1750x2200 | 2700x1750x2200 | 3500x1750x2200 | 5400x1750x2200 |
| Weight (kg) | 750 | 850 | 1250 | 1350 | 1550 | 1650 | 1850 | 2300 | 2700 | 3500 | 3500 | 6200 |
| Gas Consumption (Kg/c) | 18 | 22 | 35 | 47 | 55 | 65 | 80 | 106 | 132 | 132 | 132 | 132 |
| Water Consumption (Kg/c) | 120 | 180 | 320 | 400 | 500 | 600 | 750 | 1000 | 1250 | 1250 | 1250 | 1250 |
| Power Supply | 380V,50HZ | 380V,50HZ | 380V,50HZ | 380V,50HZ | 380V,50HZ | 380V,50HZ | 380V,50HZ | 380V,50HZ | 380V,50HZ | 380V,50HZ | 380V,50HZ | 380V,50HZ |
| Consumption | 2KW+(24KW) | 2KW+(30KW) | 3KW+(48KW) | 3.5KW+(54KW) | 3.5KW | 3.5KW | 4KW | 4.5KW | 6KW | 8KW | 8KW | 12KW |
