Model : ST-BA650PV; ST-BA800PV; ST-BA1000PV; ST-BA1200PV; ST-BA1500PV
- Volume(L) : 650 / 800 / 1000 / 1200 / 1500
- Chamber Design Pressure : 0.3MPa
- Generator Design Pressure : 1.0MPa
- Design Temperaure : 150℃
- Maximum Operating Temperature : 139℃

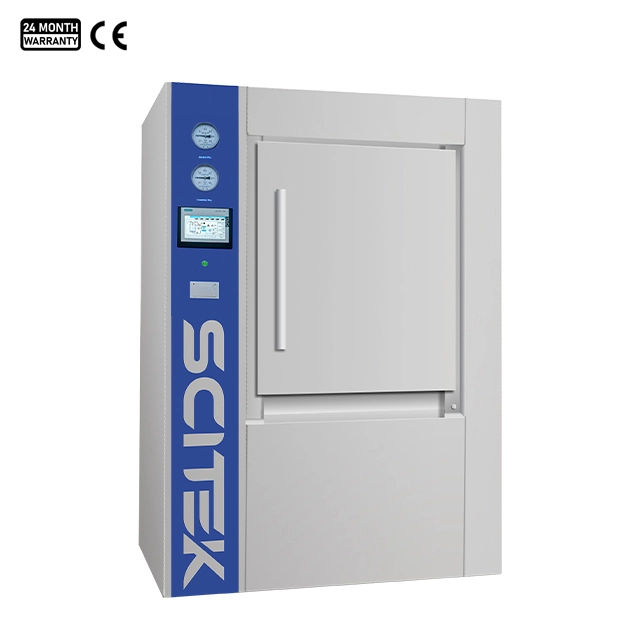

Horizontal Pulse Vacuum Autoclave, Motor Hinge Door
Horizontal Pulse Vacuum Autoclave Feature:
- Sliding door uses motor-chain vertical lift and detachable gear-meshing seal.
- Double interlocked doors with pressure-temperature safety for liquid cycles.
- Inflatable silicone seal is tear-resistant and lasts up to 1500 cycles.
- Rectangular chamber features ribbed sleeve and welded grooves for stability.
Horizontal Pulse Vacuum Autoclave Specification:
| Model | ST-BA650PV | ST-BA800PV | ST-BA1000PV | ST-BA1200PV | ST-BA1500PV |
| Chamber Size (ØxL)(mm) | 610×910×1200 | 610×910×1500 | 610×910×1800 | 680×1180×1500 | 680×1180×1850 |
| Volume(L) | 650 | 800 | 1000 | 1200 | 1500 |
| Overall Sizes (WxDxH)(mm) | 1500×1350×1900 | 1800×1350×1900 | 2100×1350×1900 | 1800×1420×2000 | 2100×1420×2000 |
| Weight (kg) | 1250 | 1350 | 1550 | 1650 | 1850 |
| Steam Consumption (KG/C) | 35 | 47 | 55 | 65 | 80 |
| Water Consumption (KG) | 320 | 400 | 500 | 600 | 750 |
| Power | 380V, 50Hz, 3KW+(36KW) | 380V, 50Hz 3.5KW+(48KW) | 380V, 50Hz 3.5KW+(54KW) | 380V, 50Hz 3.5KW+(72KW) | 380V, 50Hz, 4KW+(90KW) |
| N.W. (kg) | 1350 | 1550 | 1650 | 1850 | |
| Chamber Design Pressure | 0.3MPa | ||||
| Generator Design Pressure | 1.0MPa | ||||
| Design Temperaure | 150℃ | ||||
| Maximum Operating Temperature | 139℃ | ||||
| Maximum Operating Pressure | 0.25MPa | ||||
| Chamber Relief Valve | 0.28MPa | ||||
| Jacket Relief Valve | 0.28MPa | ||||
| Accuracy of Pressure | 0.1KPa | ||||
| Sterilization Temperature Control Accuracy | ±1℃ | ||||
| Temperature Uniformity | ±1℃ | ||||
| Negative Pressure Pulsating Vacuum | -80~0KPa | ||||
| Across the Pressure Pulsation | -80~80KPa | ||||
| Positive Pressure Pulse | 0~9 times | ||||
| Maximum Vacuum | -96KPa | ||||
