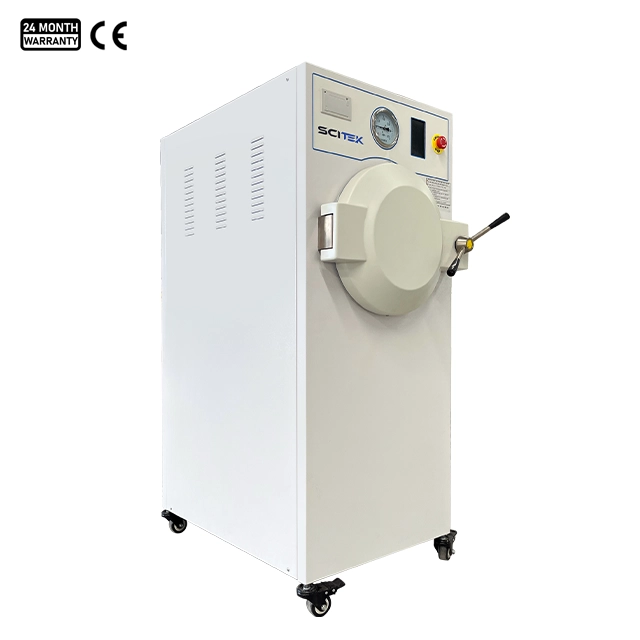

Horizontal Pulse Vacuum Autoclave HPV Series

Horizontal Pulse Vacuum Autoclave HPV Series

Model : ST-H60PV; ST-H80PV; ST-H100PV; ST-H135PV; ST-H150PV; ST-H185PV; ST-H200PV; ST-H300PV; ST-H450PV

  • Capacity (L) : 60 / 80 / 100 / 135 / 150 / 185 / 200 / 300 / 450
  • Sterilization Temperature (℃) : 105~136
  • Max. Sterilization Pressure (Mpa) : 0.23

Share the product

Category:

Horizontal Pulse Vacuum Autoclave Feature:

  1. Overheat protection: Auto heating cut-off with alarms if overheated.
  2. Interlock safety: Prevents operation with an unlocked door or pressurized chamber.
  3. Door-temperature interlock: Blocks door opening until liquids cool 20℃ below boiling.
  4. Anti-burning protection: Auto heating cut-off with alarms if water is insufficient.
  5. Steam pressure valve: Activates if chamber pressure exceeds the limit.
  6. LCD touch screen enables easy control of full sterilization cycles.

Horizontal Pulse Vacuum Autoclave Specification:

Model ST-H60PV ST-H80PV ST-H100PV ST-H135PV ST-H150PV ST-H185PV ST-H200PV ST-H300PV ST-H450PV
Capacity 60L 80L 100L 135L 150L 185L 200L 300L 450L
External Size (WxDxH)(mm) 985x600x1450 985x600x1450 1200x600x1450 1000x710x1550 1330x710x1550 1250x710x1550 1320x710x1550 1350x900x1750 1750x900x1750
Chamber Size (ØxH)(mm) Ø386×500 Ø386×700 Ø386×950 Ø500×700 Ø500×780 Ø500×95 Ø500×1000 Ø650×950 Ø650×1360
Chamber Material SUS304
Sterilization Temperature 105~136 ℃
Designed Temperature 150℃
Max.Working Temperature 136 ℃
Temp.Accuracy 0.1℃
Temp.Uniformity ≤±0.5℃
Designed Pressure -0.1/0.3Mpa
Sterilization Pressure 0.23Mpa
Pressure Resolution 0.1KPa
Ultimate Vacuum -0.096MPa
Temp. Controller PID control by microprocessor
Display LCD touch screen
Drying Function YES
Drying Time 15min
Sterilization Program ●Medical instrument program  ●Luminal instruments  ●Dressings program  ●Rubber program  ●Liquid program  ●BD Test program  ●Vacuum Test progrm

Sterilization of medical dressing, medical Instruments, Instruments with cavity, Rubber, liquids plus 4 user-customized programs BD Test and vacuum test.
Power Consumption 5.7KW 6.6KW 6.6KW 12KW 12KW 12KW 12KW 20KW 20KW
Power Supply 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz
Standard Sterilization Shelf 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs
Standard Accessories Printer
Net Weight 105kg 120kg 140kg 225kg 240kg 255kg 265kg 350kg 480kg
Gross Weight 165kg 185kg 210kg 315kg 340kg 355kg 380kg 470kg 570kg
Shipping Size (WxDxH)(mm) 1280x700x1600 1280x700x1600 1450x700x1600 1300x850x1900 1400x900x1900 1440x930x2020 1490x930x2020 1650x1100x2120 2100x1100x2120

WHY SCITEK

  1. 24 Months Limited Warranty
  2. CE StanIVC-BF700dards
  3. 1-2 Days Handling and 7-30 Days Shipping
