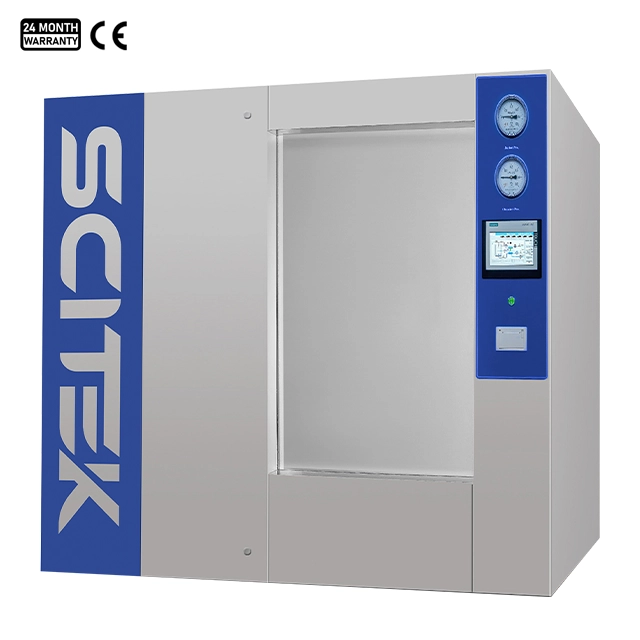

Horizontal Pulse Vacuum Autoclave Feature:

Motor-driven chain enables automatic horizontal door movement, reducing manual operation.
Double-door system with pressure and temperature interlocks ensures safe use for liquid programs.
Inflatable silicone seal provides secure, tear-resistant sealing, lasting up to 1500 cycles.

Horizontal Pulse Vacuum Autoclave Specification:

Model	ST-BH1200PV	ST-BH1500PV
Chamber Size (ØxL)(mm)	680×1180×1500	680×1180×1800
Volume (L)	1200	1500
Overall Sizes (WxDxH)(mm)	2007×2110×2113	2357×2110×2113
Weight (kg)	2300	2450
Steam Consumption (KG/C)	600	750
Water Consumption (KG)	65	80
Power	380V, 50Hz, 3.5KW(72KW)	380V, 50Hz, 4KW(90KW)
N.W.(kg)	2300	2450
Chamber Design Pressure	-0.1/0.3MPa
Jecket Design Pressure	0.3MPa
Generator Design Pressure	1.0MPa
Design Temperaure	150℃
Maximum Operating Temperature	139℃
Maximum Operating Pressure	0.25MPa
Chamber Relief Valve	0.28MPa
Jacket Relief Valve	0.28MPa
Accuracy of Temperature	0.1℃
Accuracy of Pressure	0.1KPa
Sterilization Temperature Control Accuracy	±1℃
Temperature Uniformity	±1℃
Negative Pressure Pulsating Vacuum	-80~0KPa
Across the Pressure Pulsation	-80~80KPa
Positive Pressure Pulse	0~9 times
Maximum Vacuum	-96KPa
