Model : ST-H150YDB; ST-H200YDB; ST-H280YDB
- Chamber Size(ΦxH)(mm) : Φ440×1000; Φ515×1000; Φ600×1000
- Working Pressure : 0.22MPa
- Max. Working Temperature : 134℃
- External Size(WxDxH)(mm) : 1400x650x1820; 1400x750x1700; 1520x910x1900

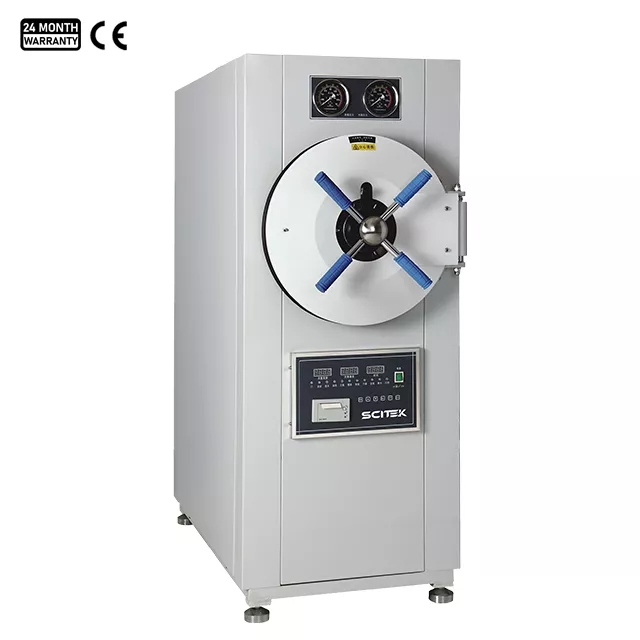

Horizontal Pressure Steam Sterilizer, 150L/200L/280L
Horizontal Pressure Steam Sterilizer Feature:
- Fully automatic sterilization with easy operation.
- Drying feature suited for medical dressings.
- Safety features: over-temp and over-pressure protection.
- Door locks above 0.027MPa; won’t run if not fully closed.
- Steam valve opens at 0.24MPa to release pressure.
- Auto shut-off and alarm on low water.
- Durable stainless steel chamber.
- Built-in printer for sterilization records.
Horizontal Pressure Steam Sterilizer Specification:
| Model | ST-H150YDB | ST-H200YDB | ST-H280YDB |
| Capacity | 150L | 200L | 280L |
| Chamber Size(ΦxH)(mm) | Φ440×1000 | Φ515×1000 | Φ600×1000 |
| Working Pressure | 0.22MPa | ||
| Max. Working Temperature | 134℃ | ||
| Sterilization Temperature | 40~134℃ | ||
| Sterilization Time Range | 0~99min | ||
| Drying Time Range | 0~99min | ||
| Temp. Uniformity | ≤±2℃ | ||
| Consumption | 9KW | 9KW | 12KW |
| Power Supply | 380V, 50Hz | ||
| External Size (WxDxH)(mm) | 1400x650x1820 | 1400x750x1700 | 1520x910x1900 |
| Net Weight | 340kg | 350kg | 462kg |
| Gross Weight | 430kg | 436kg | 570kg |
| Shipping Size (WxDxH)(mm) | 1560x860x1820 | 1560x910x1880 | 1680x1060x2050 |
