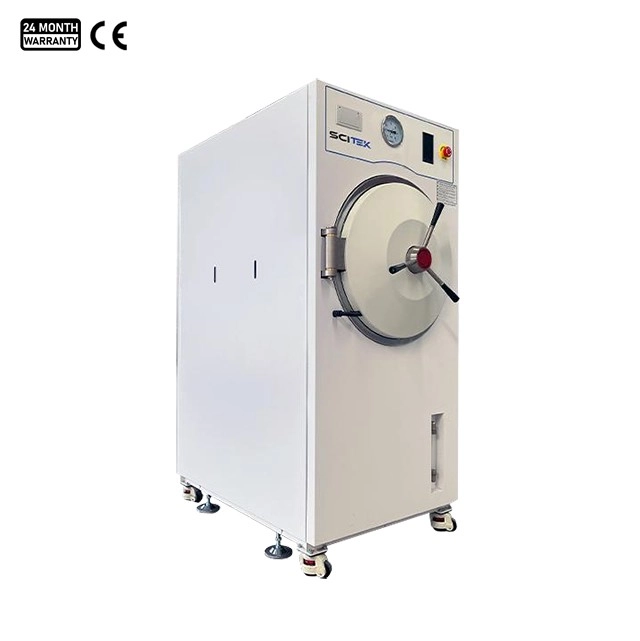

Horizontal Pressure Steam Autoclave

Horizontal Pressure Steam Autoclave

Model : ST-H60; ST-H80; ST-H100; ST-H135; ST-H150;ST-H185; ST-H200; ST-H300; ST-H450

  • Capacity (L) : 60 / 80 / 100 / 135 / 150 / 185 / 200 / 300 / 450
  • Sterilization Temperature (℃) : 105~136
  • Max. Sterilization Pressure (Mpa) : 0.23
  • Drying Function : YES

Share the product

Category:

Horizontal Pressure Steam Autoclave Feature:

  1. Overheat Protection: Auto shut-off and alarm on overheating.
  2. Electric Interlock: Blocks start if door is unlocked or chamber is pressurized.
  3. Door Temp Lock: Prevents liquid explosion if temp is too high.
  4. Low Water Cutoff: Stops heating and alarms on low water level.
  5. Pressure Valve: Releases excess steam if pressure is too high.
  6. Circuit Protection: Guards against overcurrent and short circuits.

Horizontal Pressure Steam Autoclave Specification:

Model ST-H60 ST-H80 ST-H100 ST-H135 ST-H150 ST-H185 ST-H200 ST-H300 ST-H450
Capacity 60L 80L 100L 135L 150L 185L 200L 300L 450L
External Size (WxDxH)(mm) 985x600x1450 985x600x1450 1200x600x1450 1000x710x1550 1330x710x1550 1250x710x1550 1320x710x1550 1350x900x1750 1750x900x1750
Chamber Size (ØxH)(mm) Ø386×500 Ø386×700 Ø386×950 Ø500×700 Ø500×780 Ø500×950 Ø500×1000 Ø650×950 Ø650×1360
Chamber Material SUS304
Sterilization Temperature 105~136 ℃
Designed Temperature 150℃
Max.Working Temperature 136 ℃
Temp.Accuracy 0.1℃
Temp.Uniformity ≤±0.5℃
Designed Pressure 0.3Mpa
Sterilization Pressure 0.23Mpa
Temp. Controller PID control by microprocessor
Display LCD touch screen
Drying Function YES
Drying Time 15min
Sterilization Program ●Dressings/Fabric program  ●Medical instrument program  ●Rubber program  ●Liquid program  ●DIY program
Power Consumption 5.7KW 5.7KW 6KW 9.35KW 9.35KW 10.8KW 10.8KW 12KW 20KW
Power Supply Standard 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz
Sterilization Shelf 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs
Optional Accessories Printer
Net Weight 105kg 120kg 140kg 225kg 240kg 255kg 265kg 350kg 450kg
Gross Weight 165kg 185kg 210kg 315kg 340kg 365kg 380kg 470kg 570kg
Shipping Size (WxDxH)(mm) 1280x700x1600 1280x700x1600 1450x700x1600 1300x850x1900 1400x900x1900 1440x930x2020 1490x930x2020 1650x1100x2120 2100x1100x2120

WHY SCITEK

  1. 24 Months Limited Warranty
  2. CE Standards
  3. 1-2 Days Handling and 7-30 Days Shipping
