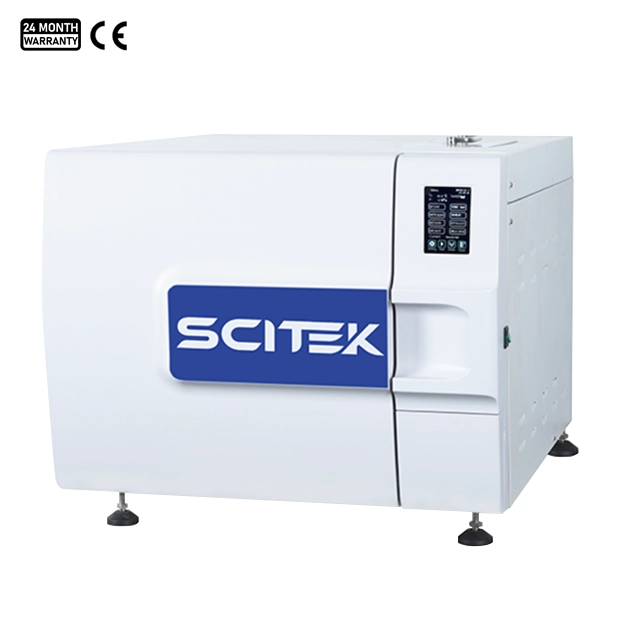

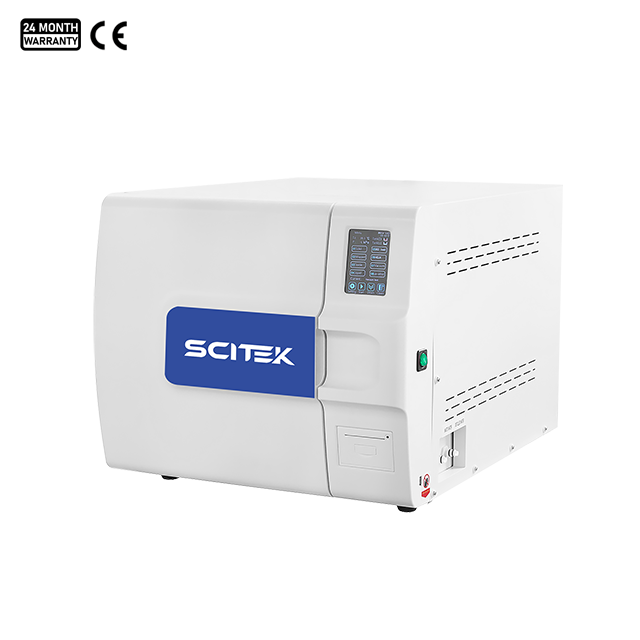

Class B Autoclave, Automatic Door

Model : ST-BA18B; ST-BA24B; ST-BA45B

  • Volume : 18L; 24L; 45L
  • Design Temperature : 139℃
  • Rated Working Pressure : 0.22Mpa

Share the product

Category:

The 8L, 12L, and 45L tabletop autoclaves feature Class B pre-vacuum technology and meet the EN13060 European standard. Compact in design, they are ideal for space-limited settings such as tattoo studios, podiatry clinics, beauty salons, veterinary practices, and laboratories.

Benchtop Class B Autoclave Features:

  1. Meets European Class B standards for high-efficiency sterilization.
  2. Automatic door switch ensures safe and easy operation.
  3. Microcomputer control with LED display provides accurate, reliable performance.
  4. Built-in BD, HELIX, and vacuum tests ensure thorough sterilization.
  5. Standard test port supports easy validation and diagnostics.
  6. Auto safety features protect against overheating, overpressure, low water, dry burn, and unsafe door opening.

Class B Autoclave Specifications:

Model ST-BA18B ST-BA24B ST-BA45B
Volume 18L 24L 45L
Power 2.2kw 2.2kw 3.5kw
Voltage 220V110V; 50/60Hz
Design Pressure 0.25Mpa
Design Temperature 139℃
Rated Working Pressure 0.22Mpa
Rated Working Temperature 134℃
Chamber Volume Ø250×370 Ø250×470 Ø316×615
Sizes(WxDxH)(mm) 620x505x450 710x505x450 870x657x575
Shipping Size (WxDxH)(mm) 670x560x510 760x560x510 980x750x630
N.W./G.W. (kg) 53/62 58/65 105/142

Benchtop Class B Autoclave Details:

Class B Autoclave

The overall design of the benchtop class B autoclave reflects simplicity and practicality, providing users with a comfortable and convenient operating experience.

Clean appearance, smooth lines, touch screen control panel is convenient for users to set and monitor the sterilisation process.

The shelves are made of high quality stainless steel, sturdy and durable, and can accommodate multiple instruments or items to be sterilised.

The spacious design of the chamber ensures that steam penetrates evenly to every corner, ensuring the complete sterilisation of items.

WHY SCITEK

  1. 36 Months Limited Warranty
  2. CE Standards
  3. 1-2 Days Handling and 7-30 Days Shipping

FAQ

What is B type of sterilization?

Type B sterilization refers to a classification of sterilization methods that are capable of effectively sterilizing all types of medical devices, including hollow, porous, and solid items, ensuring the complete elimination of all forms of microbial life, including bacterial spores.

Difference between B class and N class autoclave?

Class B autoclaves are capable of sterilizing all types of instruments including hollow, porous, and solid items, while Class N autoclaves are limited in their ability to sterilize hollow and porous items due to their vacuum capabilities.

What is the B type autoclave sterilisation process?

Type B autoclaves start by evacuating nearly all air from both the chamber and the load. Following this, they introduce short bursts of steam until the chamber reaches the necessary pressure and temperature for sterilization to commence. These conditions are maintained throughout the sterilization process for the specified holding time.

How is a B type autoclave maintained?

Although the appliance’s quality ensures its performance, adhering strictly to the maintenance schedule is crucial. Daily, clean the external surfaces, door, and its seal. Weekly, disinfect the water tank and thoroughly clean the internal filters.
