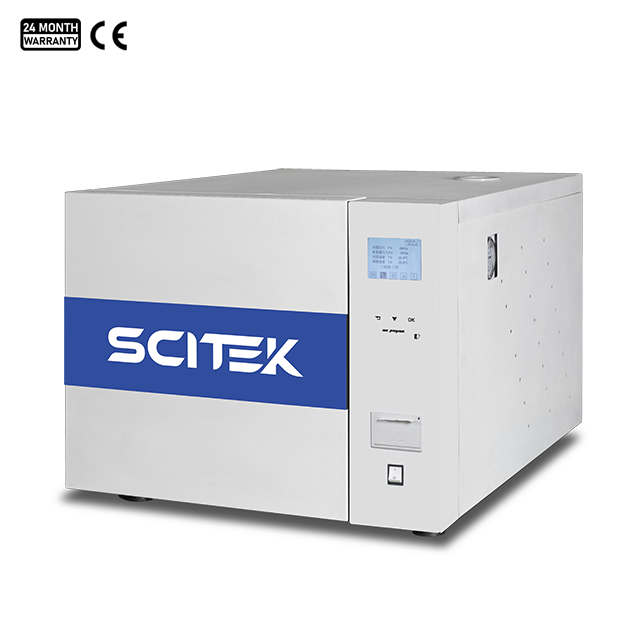

Benchtop Class B Autoclave Feature:

Overheat Protection: Shuts off with alarm if temperature exceeds safe limits.
Safety Interlock: Blocks operation if the door isn’t locked or pressure is high.
Anti-Dry Protection: Stops heating and alarms on low water level.
Pressure Valve: Releases steam if pressure exceeds safe range.
Auto Operation: LCD touchscreen controls full cycle: vacuum, heat, sterilize, discharge, dry.
Vacuum Pump: Triple pulsed vacuum efficiently removes air from instruments.

Benchtop Class B Autoclave Specification:

Model	ST-B45B
Capacity	45L
External Size(WxDxH)	870x600x520mm
Chamber Size(ØxH)	Ø316x590mm
Chamber Material	SUS304
Sterilization Temperature	105~136 ℃
Designed Temperature	150℃
Max.Working Temperature	136 ℃
Temp.Accuracy	0.1℃
Temp.Uniformity	≤±0.5℃
Designed Pressure	-0.1/0.3Mpa
Sterilization Pressure	0.23Mpa
Pressure Resoluiton	0.1KPa
Ultimate Vacuum	-0.096MPa
Temp. Controller	PID control by microprocessor
Display	LCD touch screen
Drying Function	YES
Drying Time	15min
Sterilization Program	●Medical instrument program
	●Luminal instruments
	●Dressings program
	●Rubber program
	●Liquid program
	●BD Test program
	●Vacuum Test progrm
	Sterilization of medical dressing, medical Instruments, Instruments with cavity,
	Rubber, liquids plus 4 user-customized programs BD Test and vacuum test.
Water Injection Method	Built-in water tank
Power Consumption	3.6KW
Power Supply	220V 50Hz
Standard Sterilization Shelf	1pcs SS shelf
Optional Accessories	Printer
Net Weight	65kg
Gross Weight	120kg
Shipping Size(WxDxH)	1150x700x700mm
