Model : ST-EO80; ST-EO120; ST-EO120I; ST-EO220; ST-EO220I; ST-EO330
- Capacity : 21L/67L/103L/196L/294L/126L/192L
- Sterilizing Temp. : 36-55℃
- Product Form : Manual door vertical
- Heating Method : Electric heating

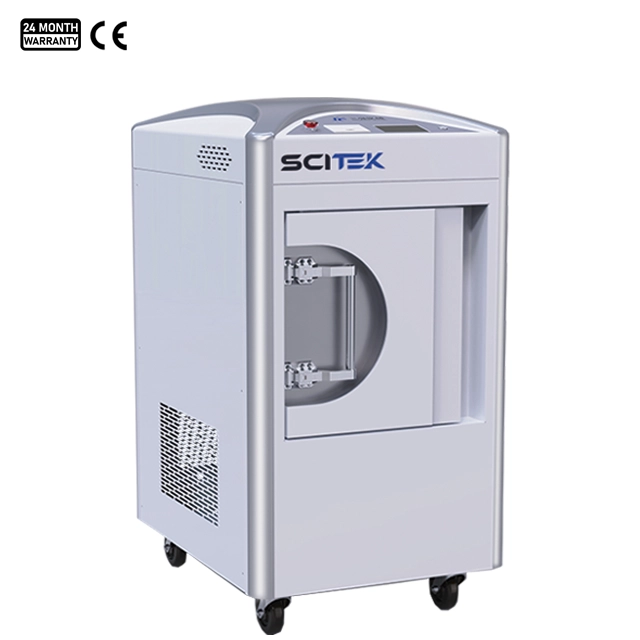

Automatic Ethylene Oxide Sterilizer
Ethylene oxide sterilization is the most effective gas sterilization technique, providing broad-spectrum effectiveness, deep penetration into materials, item safety, minimal environmental impact, dependable testing, and convenient storage after sterilization.
Ethylene Oxide Sterilizer Features:
- The fully automatic control system enables one-click operation, managing the entire process seamlessly.
- The display provides real-time data on temperature, humidity, pressure, disinfection time, and gas treatment.
- Built-in sensors autonomously regulate chamber temperature, humidity, and pressure for optimal sterilization.
- The 5052 aluminum sealing door ensures durability with a strong 200Kpa pressure resistance.
Ethylene Oxide Sterilizer Specifications:
| Model | ST-EO80 | ST-EO120 | ST-EO220 | ST-EO330 | ST-EO120I | ST-EO220I |
| Capacity | 67 L | 103 L | 196 L | 294L | 126L | 192L |
| Sterilizing Temp. | 36-55℃ | |||||
| Product Form | Manual door vertical | |||||
| Heating method | Electric heating | |||||
| Display | 5’’ LCD Touch Screen | 7’’ LCD Touch Screen | ||||
| Controller | PLC | |||||
| Sterilizing Time | Adjustable 0-99 hour | |||||
| Sterilizer Pressure | -60kpa | |||||
| Sterilization Method | Low temperature, 100% Pure EO gas sterilization | |||||
| Safety Protection | Temperature and Pressure protection | |||||
| Tray | 2 stainless net steel | |||||
| Printer | Built-in Thermal mini-printer | |||||
| USB Port | Yes | |||||
| Internal Material | SS304 Stainless Steel | 5052 Aluminium, has better thermal conductivity than stainless steel | ||||
| External Material | Carbon steel | |||||
| Vacuum system | High-performance, low-noise, oil-free vacuum pump | |||||
| Humidity System | Use saturated steam to humidify the sterilization chamber, and the air humidity is more uniform | |||||
| Timing System | EO gas diffusion time and residual EO aeration timing settable | |||||
| Pre-set | Standard Sterilization Mode and Residual Washing | |||||
| Power Supply | 220V, 50Hz | |||||
| Consumption | 2.6KW | 3.0KW | 3.3KW | 3.6KW | 3.0KW | 3.6KW |
| Internal Size (mm) | 585x275x422 | 585x375x472 | 705x505x552 | 760x545x712 | 700x450x400 | 820x510x460 |
| External Size (mm) | 795x615x1140 | 795x615x1140 | 968x800x1240 | 968x800x1400 | 976x790x1715 | 976x790x1715 |
| Net Weight | 124kg | 147kg | 207kg | 227kg | 227kg | 247kg |
| Package Size (mm) | 970x770x1310 | 940x750x1310 | 1120x920x1400 | 1020x930x1530 | 1130x920x1860 | 1130x920x1860 |
| Gross Weight | 150kg | 177kg | 237kg | 277kg | 274kg | 297kg |
Ethylene Oxide Sterilizer Packing:
The ethylene oxide sterilizer is securely packaged with impact-resistant materials to ensure safe and reliable delivery. Compliant with international transport standards, the packaging minimizes the risk of damage from impacts and safeguards the equipment throughout transit.
WHY SCITEK
- 24 Months Limited Warranty
- Help meet CE quality assurance guidelines
- 1-2 Days Handling and 7-30 Days Shipping
